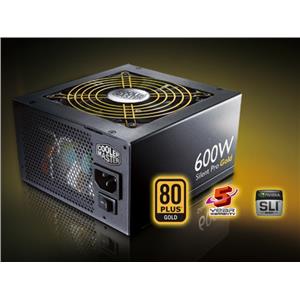

| COOLER MASTER 600W 80+ SILENT PRO POWER SUPPLY UNIT, 1x(4+4),2x(6+2)PCIE,9xSATA,5YR (RS-600-80GA-D3) |
|
Manufacturer: COOLER MASTER
|
|
$198
|
|
|
|
|
View all COOLER MASTER products
Contact I.Store for more information about this product
|
| |
|
Specifications
· Model: RS-600-80GA-D3
· Type: Intel Form Factor ATX 12V V2.3
· SSI Form Factor: EPS 12V V2.92
· Dimension (W / H / D): 150 X 160 X 86 mm, 5.9 x 6.29 x 3.4 inch
· Input Voltage : 90-264Vac (Auto Range)
· Input Current : 7 - 3.5A
· Input Frequency Range: 47-63Hz
· PFC: Active PFC (0.99)
· Power Good Signal: 100~500ms
· Hold Up Time: >17ms
· Efficiency : 90% typical
· MTBF : >100,000 hours
· Protection: OVP / UVP / OCP / OPP / OTP / SCP
· Output Capacity: 600W
· Max. Output Capacity: 720W
· Operation Temperature: 0~40°C (Nominal Input Voltage)
· Regulatory: CE / FCC / UL / TUV / C-Tick / GOST / BSMI / CCC / KCC
· Fan: 120mm Ultra Silent Fan
· Certifications: SLI / CrossFire / 80 Plus Gold
· Connector
o M/B 20 + 4 pins x 1
o CPU 4 + 4 pins x 1
o PCI-e 6+2 pins x 2 / PCI-e 6 pins x 2
o (One PCI-e 6+2 pins connector
o extends to one PCI-e 6 pins connector)
o SATA x 9 / Peripheral 4 pins x 4
o Floppy 4 pins x 1
| |
| |
|
|
|
|
| |
|
