Product Description
Full mesh on the front panel and top with large vents on the side panel for
superior cooling
3 designated places for radiators: 240mm: top, front; 120mm: rear
Supports up to three 200mm large fans for extreme airflow with support for up
to 9 total fans (KKN1: 9 fans, KWN1: 7 fans)
New ODD tool-less design “EZ tray” for quick installation
Supports up to 10 SSDs (4 in the removable HDD/SSD combo cage, 1 behind
the M/B tray) and 7 HDDs with HDD/SSD combo trays
Dual Super Speed USB 3.0
High-end component support – long graphics cards up to 423mm and tall CPU
coolers up to 171mm
Multiple removable dust filters (top, front, PSU) for improved system
maintenance
Top compartment with cover to place personal belongings

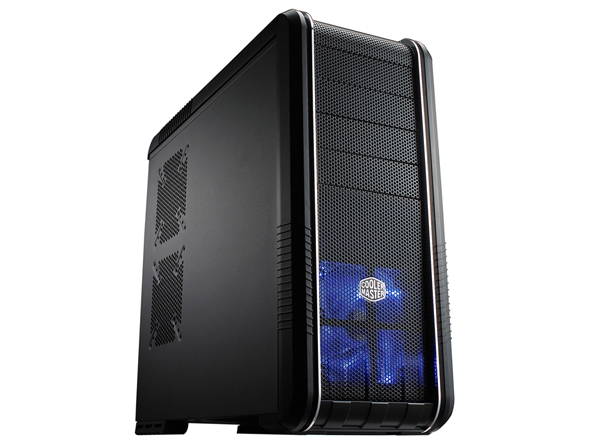

Model: Cooler Master CM690 III
Platform: Mid Tower
Classification: Consumer
Exterior Colour: Black
Interior Colour: Black
Body Material: Steel & Plastic
Front Bezel Material: Mesh
PSU Support: ATX
PSU Orientation: Bottom Mounted
Motherboard Support: ATX, Micro ATX
5.25" External Bay (Exposed): 3
3.5" External Bays (Exposed): 0
3.5" Internal Bays (Hidden): 7
2.5" Internal Bays (Hidden): 3
Expansion Slots: 7+1
Max Add On Card Length (mm): 423
Max CPU Cooler Height (mm): 171
CPU Cut Out; Yes
Front Panel I/O: USB 3.0 (2), USB 2.0 (2), Audio In (1), Audio Out (1)
Cooling Fans: Front 200mm (1), Rear 120mm (1),
Optional Fans: Top 120/140mm (2), Rear 120mm (1), Side 120mm (2),
Bottom 120mm (1), HDD Cage 120mm (1)
Liquid Cooling System: Water Holes and Optional Radiator Support
Other Features: Dust Filters
Packaging: Retail
Unit Dimensions (W x H x D mm): 230 x 507 x 502
Weight (Kg): 8.7
