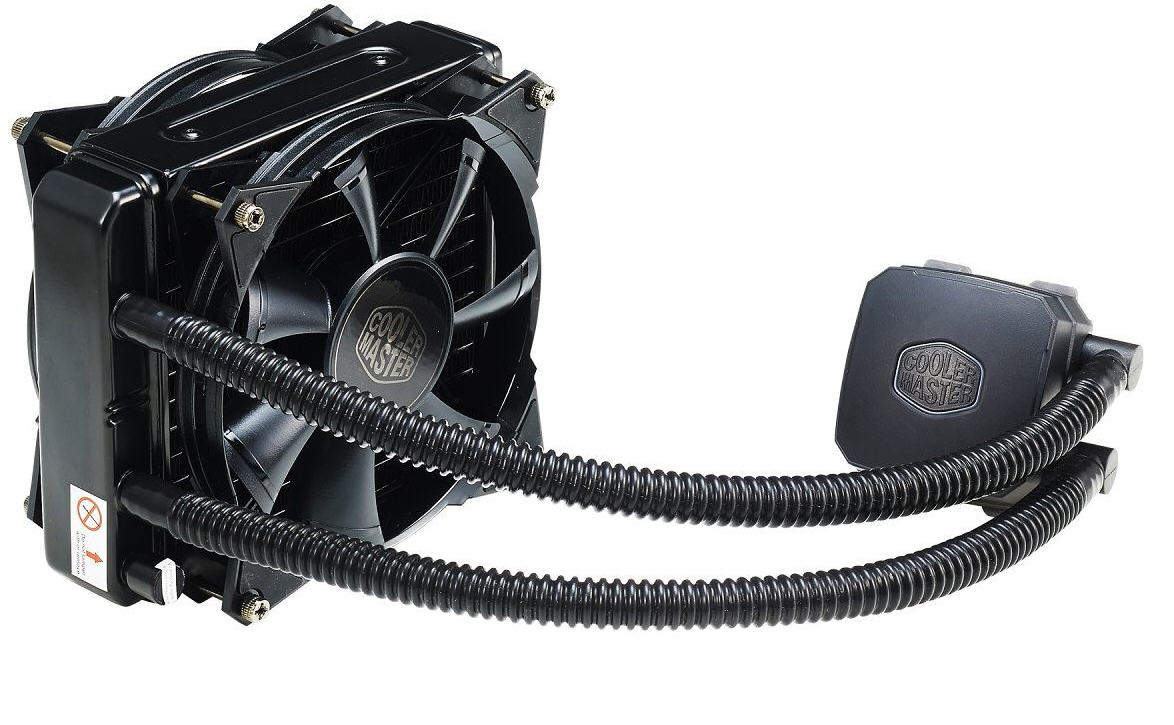

Product Description
Factory filled with coolant, then sealed and pressure tested - requires zero maintenance for years.
CM self-designed pump and waterblock guarantees the best water flow and system performance.
Bigger tubing and radiator size provide superior heat dissipation performance.
Exclusive JetFlo 140 fan application to ensure the best radiator heat change efficiency.
Unique LED lens on water block for ID outlook
AMD® AM4* / AM3+ / AM3 / AM2 / FM2 / FM1 socket
Waterblock Dimensions 75 x 69.8 x 49.1 mm ( 3 x 2.7 x 1.9 inch )
Radiator Dimensions 171 x 139 x 38 mm ( 6.7 x 5.5 x 1.5 inch )
Radiator Material Aluminum
Tube Length 375 mm
Tube Diameter F10
Fan Dimension 140 x 140 x 25 mm ( 5.9 x 5.9 x 1 inch ) *support 120mm fan x 2
Fan Speed 800~2000 RPM (PWM) ± 10%
Fan Airflow 54~122.5 CFM ± 10%
Fan Air Pressure 0.7~3.5 mm H2O ± 10%
Fan Life Expectancy 40,000 hours
Fan Noise Level (dB-A) 21~39 dBA
Bearing Type Rifle bearing
Connector 4-Pin
Fan Rated Voltage 12 VDC
Fan Rated Current 0.3A
Power Consumption 3.6W
Pump Life Expectancy 70,000 hrs
Pump Noise <25 dBA
Pump Rated Voltage 12 VDC
Pump Power 2.9W
EAN / UPC Code 4719512046166 / 884102025167
