Product Description
Specifications
Computer Connections: 1
Connectors
Computer: 1 x USB-C Male
Device
3 x USB3.1 Gen1 Type A Female*
*1 port supports BC1.2, 7.5W (5V/1.5A)
*2 ports share 5W (5V/1A)
*The total output of 3 x USB3.1 Gen1 Type A Female is 10W(5V@2A)
Video Output
1 x Displayport
1 x HDMI
1 x VGA
LAN Ports: 1 x Gigabit Ethernet
Audio Inputs: 3.5 mm Line-In (Shared)
Audio Outputs: 3.5 mm Line-In (Shared)
Power
1 x USB-C
PD Pass-Through up to 60W*
*Supports Power Profiles include: 5V/3A or 9V/3A or 12V/3A or 20V/3A.
*USB-C AC Adapter from the laptop is needed for Power Delivery Pass-Through Function.
Performance
Flash
Memory SD/SDHC/SDXC*
Micro SD/SDHC/SDXC (up to 128 GB)*
*SD and Micro SD Card cannot be used at the same time. They would work in accordance with the order they are inserted.
Video Resolution
Single View:
DisplayPort - 3840*2160@30*
HDMI - 3840x2160 @30 or VGA - 1920x1200@60
Dual View:**
DisplayPort - 1920*1200@60
HDMI/VGA - 1920x1200@60
*For video output to work through a USB-C port, it must support DP Alt Mode.
** For Dual-View to work, a computer's graphics card must support MST technology.
Power Consumption: TBD
Environmental
Operating Temperature: 0°C to 40°C (32°F to 122°F)
Storage Temperature: -10°C to 70°C (-4°F to 158°F)
Humidity: 10% to 90% RH, Non-condensing
Physical Properties
Housing: Metal
Weight: 0.32 kg (0.7 lb)
Dimensions (L x W x H): 28.00 x 7.50 x 1.45 cm (11.02 x 2.95 x 0.57 in.)
Note: For some of the rack-mounted products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
Package Contents

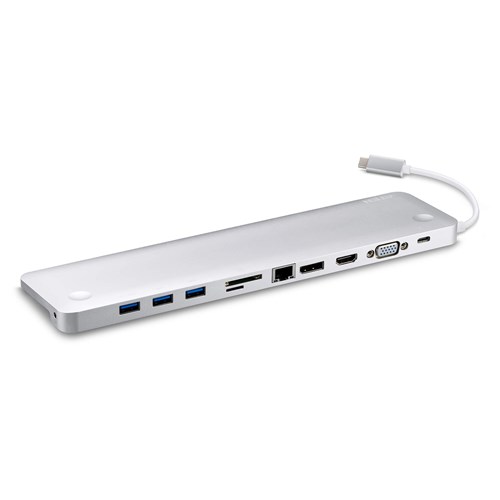

1 x UH3234 USB-C Multiport Dock with Power Pass-Through
1 x User Instructions
