Product Description

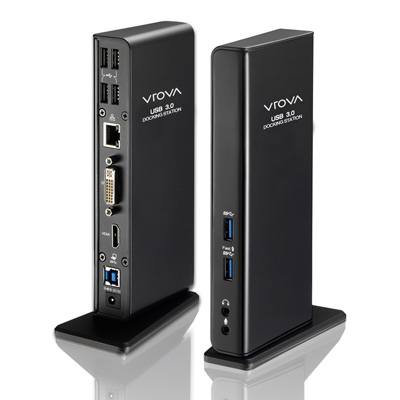

VROVA USB3.0 Universal Dual Head Docking Station
PRODUCT DESCRIPTION
The VROVA Universal USB 3.0 docking station (USB3DHDS) provides extra ports to the computer that has extra connectivity needs. Through the docking station, you can extend the connection of a computer to more USB peripherals, Ethernet network, speaker and microphone using only one USB port on your computer.
This docking station features built-in USB 3.0 ports which mean you can enjoy the super speed data transmission between USB peripherals. Besides, this product is fully compliant with the USB 1.1/2.0 specification.
Dual Display is other major feature of the product with the DVI and HDMI® port(s), you can connect more monitor, LCD or projector. The connected monitor can be configured to either mirror your primary screen, or extend the Window desktop allowing visibility of more applications at the same time. No more stacking windows within the confines of a single display.
PRODUCT SPECIFICATION
Host Interface USB 3.0
Connector Video output
HDMI® 30pin Female Connector
DVI HDDE 30pin Female Connector
Host upstream link
USB B Type Female Connector
HUB downstream link
USB A Type Female Connector
Audio Port
3.5mm stereo mini-jack 2.1ch
Ethernet Port
RJ45 Connector
Power
DC power jack
Video resolution
HDMI®
2048x1152
DVI
2048x1152
Supported colors
16 Bits and 32 Bits
Audio
2.1Ch
Ethernet
10/100/1000
Power
Power Mode
Self-powered
Power Adapter
Input: AC 100-240V
Output: DC 5V/4A
Power Consumption
Operating Power: 14.43W
Suspend Mode Power: 1.95W
Physical Properties
Housing
ABS (Plastic)
Weight
365g approx.
Working Environment
Operation Temperature
0~ 40 degree
Storage Temperature
-20 ~ 70 degree
Compliance
CE, FCC
* Specifications are subject to change without notice.
System requirements
The minimum requirements for the PC are:
* 1.6 single core CPU or higher processor clock. Intel Pentium/Celeron family, or AMD K6/Athlon/Duron family, or compatible processor 1GB of RAM
* USB 2.0/3.0 port
* 30MB of available disk space
* Windows® XP 32-bit,Windows® Vista 32/64-bit,Windows® 7 32/64bit, Windows® 8 32/64bit.
To play DVD on the extra connected monitor through docking station, in addition to the requirements above, the following requirements should also be met:
* With dual core CPU at 2.0 GHz processor clock
PRODUCT FEATURE
* Compatible with USB 3.0/2.0 specification
* Resolution up to 2048x1152
* Support audio 2.1 channel
* Support Gigabit Ethernet
* Support HDMI® 1.4
* Support 1 X USB3.0 Fast Charge Port for Tablets / Mobile
Package contents
* USB3.0 Docking Station x1
* USB 3.0 Cable x1
* Power Adapter x1
* CD (Driver and User's Manual) x1
* Quick Installation Guide x1
