Product Description

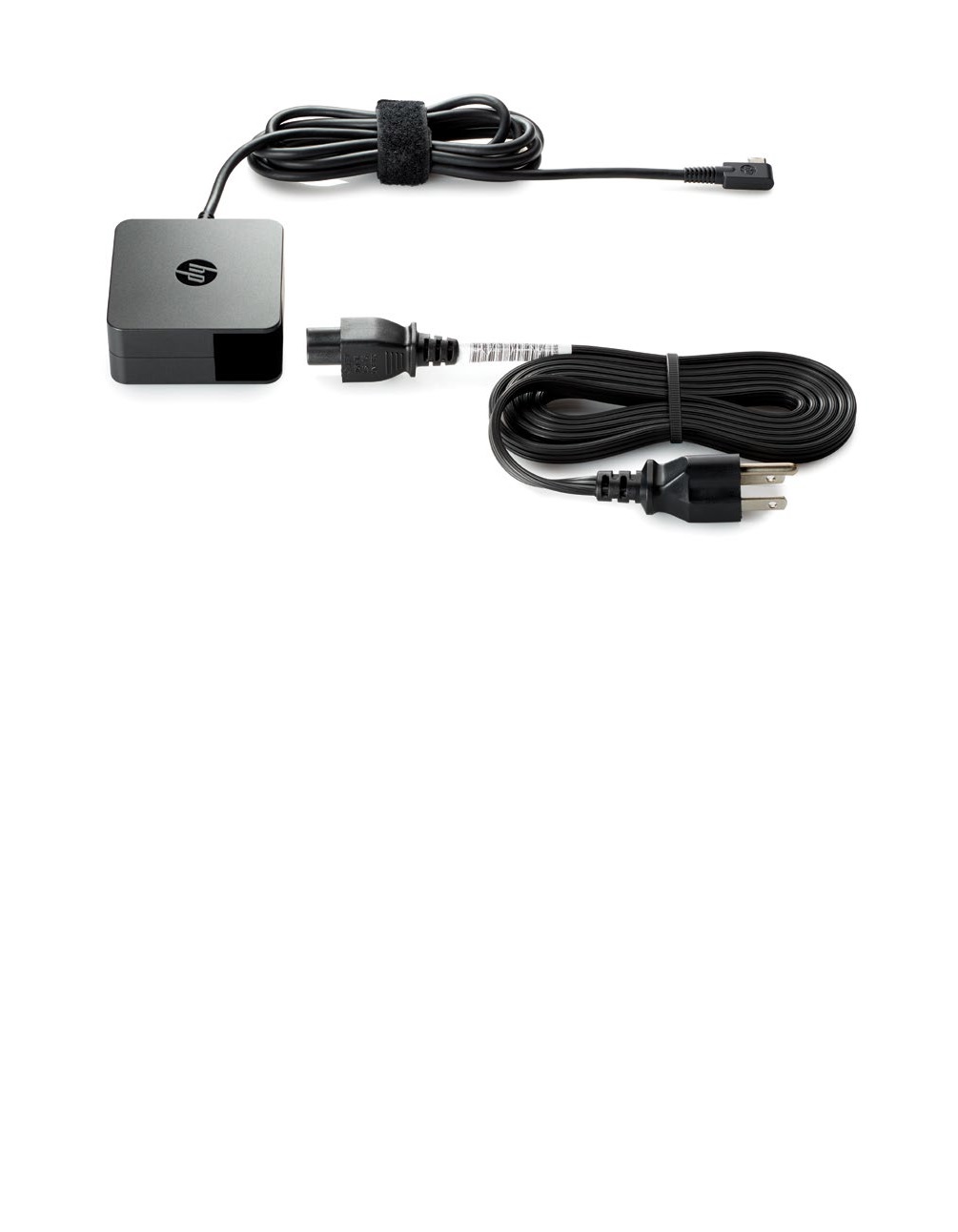

Model number V5Y26AA
Easy AC charging through USB-C™
Power and charge your notebook or tablet from its USB-C™
port with the HP 45W USB-C™ AC Adapter.
Simple to use
Connect one end of the adapter to the USB-C™ port on your device1, and plug the AC head into
any available wall outlet.
World-class support.
Rest easy with a one-year limited warranty.
Dimensions
(H x W x D)
66x 66 x 28.5 mm
2.6x2.6x1.1in
Input Efficiency 78.71% min at 115V/230V(option) @5V/2A
87.41% min at 115V/230V(option) @12V/3A
87.73% min at 115V/230V(option) @15V/3A
Input frequency range 47 to 63 Hz
Input AC current 1.4 A at 90 VAC and maximum load
Output power 45W max
DC output 5V/12V/15V
Hold-up time 5msec at 115 VAC input
Output current limit <5A
Over voltage protection:
5V less than 7.25V
12V less than 16.85V
15V less than 20.5V
Connector 3 pin/grounded, mates with type-C connector
Environmental Design
Operating temperature 0° to 35° C
Non-operating (storage) temperature -20° to 85° C
Altitude 0 to 5,000 m
Humidity 0% to 95%ww
Storage Humidity 0% to 95%
Safety Certifications CE Mark - EMC directives; Worldwide safety standards - IEC60950, EN60950, UL60950, Class1, SELV; Agency approvals - C-UL-US, NORDICS,
DENAN, EN55022 Class B, FCC Class B, CISPR22 Class B, CCC, NOM-1 NYCE; Reliability - failure rate of less than 0.1% annually within the first three
years of operation.
