Product Description
Specifications
Computer Connections:1
Connectors
Device:
1 x USB-C Female (Black, Data only)
3 x USB3.1 Gen1 Type A Female (Blue)
Computer:1 x USB-C Female (Black)
Video Output:
1 x Displayport Female (Black)
1 x HDMI Female (Black)
LAN Ports: 1 x Gigabit Ethernet Female (Black)
Audio Inputs: 1 x 3.5mm Analog Audio Input (Black)
Audio Outputs: 1 x 3.5mm Analog Audio Output (Black)
Power Jack: 1
LEDs
Power: 1 (White)
Video Resolution:
Single-View: DisplayPort- 3840x2160@30* or HDMI - 4096x2160@30
Dual-View**:
DisplayPort 1 - 2048x1200@60*
HDMI 2 - 1920x1200@60
*The UH3230 supports DP++ standard for using optional active/passive video adapter to convert DP signals to DVI/HDMI.
**Mac computers only support a single-view output.
Power
Consumption: DC20V, 90W
Package Contents:1 x USB-C Cable
Environmental:
Operating Temperature 0–40°C
Storage Temperature -20–60°C
Humidity 0–80% RH, Non-condensing
Physical Properties:
Housing: Metal
Weight: 0.56 kg (1.24 lb)
Dimensions: (L x W x H) 20.00 x 9.07 x 2.15 cm (7.87 x 3.57 x 0.85 in.)
Note: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
Package Contents

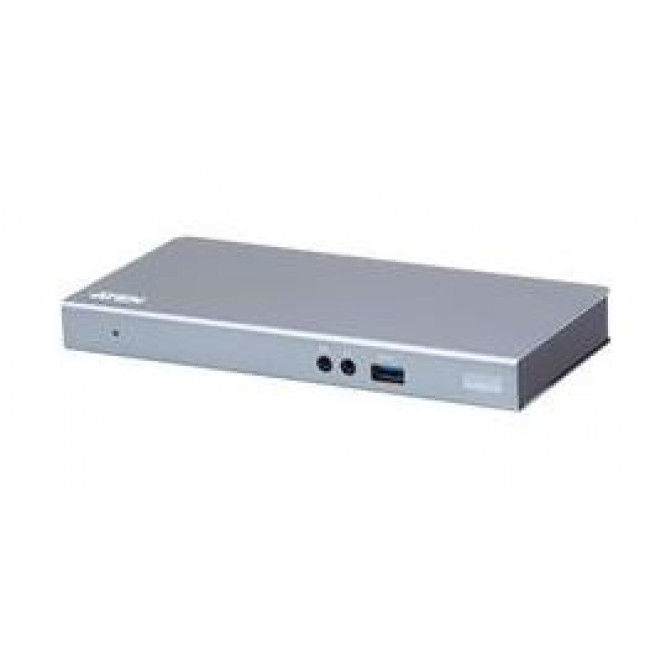

1x UH3230 USB-C Multiport Dock
1x USB-C Cable
1x AC Power Adapter with Cable
1x User Instructions
