Product Description
PRODUCT DESCRIPTION

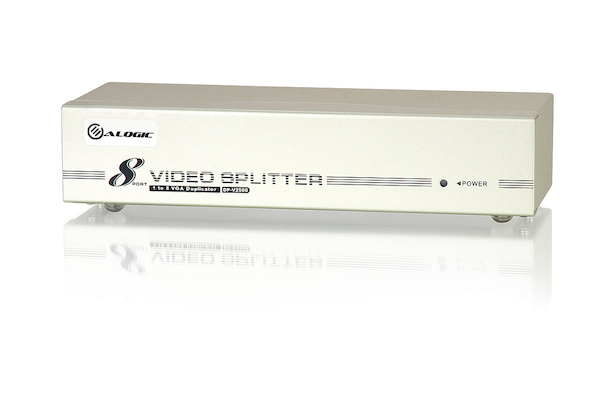

The ALOGIC VGA video splitter is used to broadcast one VGA signal to multiple different displays. They come with the latest technology to split the signal and also amplify the video signal to increase the transmission distance to 65m. The device operates at high bandwidth of 35 MHz, which allows transmission of large amounts of information at a very high speed, allowing resolution upwards of 192 x 144 in 24 or 32 bit true colour mode. All ALOGIC VGA video splitters can be cascaded to add additional displays. They video splitter are ideal for all types of commercial or SOHO applications. The device comes standard with 2 years manufacturer warranty for your peace of mind.
PRODUCT SPECIFICATION
Functions
Model: HD15S08
Signal Type
VGA, SVGA, XGA, UXGA, WUXGA & Multi Sync
Video Input
1 X VGA Male (HDB-15)
Video output
8 X VGA Female (HDB-15)
Signal Range
65m
Maximum Resolution
1920 X 1440 @60Hz
Bandwidth
350MHz
Power Consumption
DC 9V
Housing
Metal
Power Indicator
LED Light
PRODUCT FEATURE
* Extended signal up to 65m with in built booster.
* Supports 35 MHz bandwidth.
* Supports resolutions up to 192 X 144 @6 Hz.
* Can be cascaded to 3 levels for additional displays.
* Supports VGA, XGA, SVGA, UXGA,WUXGA and Multi Sync monitors
* Metal Housing.
* Warranty: 1 Year Manufacturers Warranty.
Package Content:
1 x 8 Port VGA Video Splitter
